UHF FM Yagi 11 elements 440-450MHz
Cushcraft A449-11S UHF FM Yagi 11 elements 440-450MHz
A449-11S - 440-450MHZ, YAGI, 11 ELE, 13.2 DBI, 350W
Use one of these 440 MHz beams for your FM/Packet needs. Both work great for vertical or horizontal polarization.
A449-11S - 440-450MHZ, YAGI, 11 ELE, 13.2 DBI, 350W
Use one of these 440 MHz beams for your FM/Packet needs. Both work great for vertical or horizontal polarization.
Cushcraft A449-11S Antenna Manual
A449-11S - 440-450MHZ, YAGI, 11 ELE, 13.2 DBI, 350W
Use one of these 440 MHz beams for your FM/Packet needs. Both work great for vertical or horizontal polarization. $170 cdn
placed on the floor 38 or 28 floor.
Use one of these 440 MHz beams for your FM/Packet needs. Both work great for vertical or horizontal polarization. $170 cdn
| Specifications | |
| Frequency, MHz: | 440-450 |
| No. Elements: | 11 |
| Forward Gain, dBi: | 13.2 |
| Front to Back Radio, dB: | 20 |
| SWR 1.2:1 Typical 2:1 Bandwidth, MHz | >10 |
| Power Rating, Watts PEP: | 350 |
| 3 dB Beamwidth, Degees E Plane | 48 |
| Side Lobe Atten., dB, E Plane: | 40 |
| Boom Length, ft (m): | 4.4 (1.35) |
| Electrical Wavelength: | |
| Longest Element, in (cm): | 13 (33) |
| Turning Radius, ft (m): | 2.8 (0.85) |
| Mast Size Range, in (cm): | 1.25 - 1.5 |
| Wind Load, ft sq (m sq) | 0.39 (0.04) |
| Weight, lb (kg) | 4 (1.8) |
Andre
VE3SP.com
1995
Cushcraft A449-11S UHF FM Yagi 11 elements 440-450MHz - Cushcraft A449-11S Antenna Manual
Cushcraft A449-11S Antenna Manual
A449-11S // A44911S - ASSEMBLY AND INSTALLATION
https://static.dxengineering.com/global/images/instructions/csh-a44911s.pdf
https://manualzz.com/doc/54697770/cushcraft-a449-11s-antenna-manual
A449-11 70 CENTIMETER FM YAGI ANTENNA 440-450 MHz
boom not included.
Andre
VE3SP.com
1995
Cushcraft A449-11S UHF FM Yagi 11 elements 440-450MHz - Cushcraft A449-11S Antenna Manual

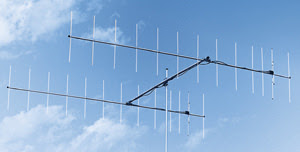

Co Phased Antenna Cushcraft A449-11S
Andre
VE3SP.com
2023
Cushcraft A449-11S UHF FM Yagi 11 elements 440-450MHz - Cushcraft A449-11S Antenna Manual

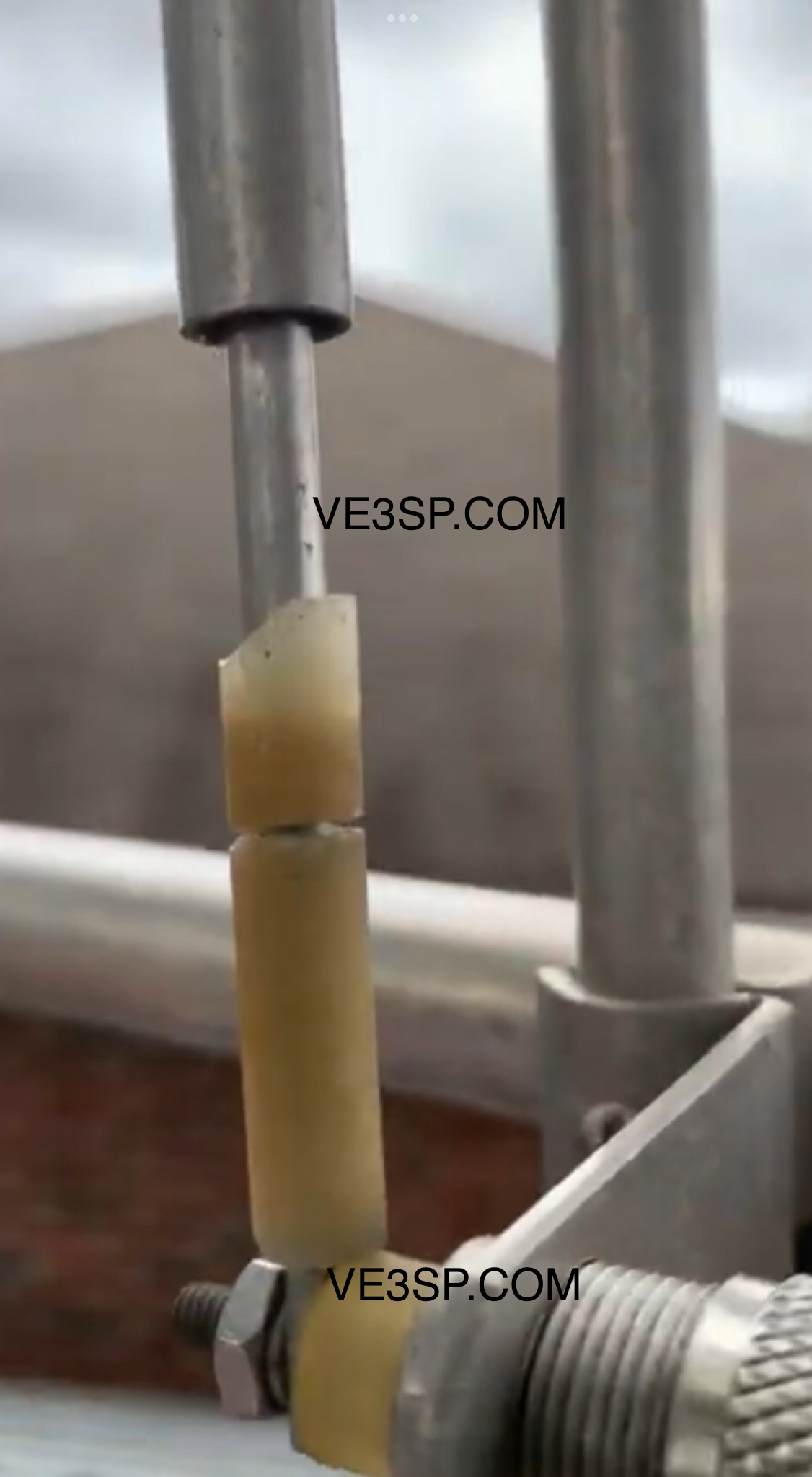

Caution:: Sun damage Replacement/Purchase/Order - poly tube from MFJ and wait for back order.
- issue here is sun damage, sun cracks up that plastic.
used as a capacitor. sun damage shown.
Common Problems: sun damage
Research Dielectric Gamma Match. dielectric capacitor.
Common Problems: sun damage
Solution:
You can create one or a replacement using coax.
- replacement - use the plastic insulation that comes with RG 8 coax and use it as a replacement.
- just swap out the tube to be certain the inner diameter matches the coax outer diameter with the casing and braid removed.
- replacement - use the plastic insulation that comes with RG 8 coax and use it as a replacement.
- just swap out the tube to be certain the inner diameter matches the coax outer diameter with the casing and braid removed.
- swapping that tube out for another that will fit. Brass, copper, aluminum, will all work. Main thing is it matches the coax once the jacket and braid is removed. RG213 is likely a good size match.
Dielectric Length = 150mm
Gamma Rod Length = 200mm
Using coax as dielectric capacitor.
Andre
VE3SP.com
1995
Solution - sun cracks plastic. (youtube search)
